Extensible Visitor Pattern in C#
Recently, I stumbled upon this paper Synthesizing Object-Oriented and Functional Design to Promote Re-Use. The paper wants to provide a solution to the expression problem. The authors suggest an improved version of the visitor pattern that they call "extensible visitor pattern" which is essentially a combination of the visitor pattern with the factory method pattern.
While the paper and the expression problem statement don't explicitly mention SOLID principles, it looks like what they are really doing is exploring how to evolve a code base while respecting the Open/Closed Principle:
Software entities (like classes, methods, and functions) should be open for extension, but closed for modification.
The idea that software entities should be open for extension is intuitive, we can add new code, inherit types, compose etc. But what does it mean closed for modification? Should we never change code that has been deployed to production? Is that what the principle is saying?
In my opinion, changing a piece of code for fixing a bug doesn't go against this principle, I believe that the principle suggests that we should be able to not change existing code when we want to add some functionality.
Honestly, if I think about this principle and what I saw in my career in software development, I can safely affirm that I never saw this principle applied faithfully. Classes, methods and all software constructs are modified all the time.
The authors work through several examples all based on the same scenario: we have a set of shapes and a set of tools, essentially functions, over these shapes and we want either to add a new shape or to add a new tool. How can we update our code without changing the existing code? And what impact does our approach have on clients using our code?
They present 4 different implementations:
- functional without any pattern
- object oriented using the interpreter pattern
- object oriented using the visitor pattern
- object oriented using the extensible visitor pattern that is subject of the paper
The code samples are written in Java, a language called "Pizza" which is "a parametrically polymorphic extension of Java", and SML for the functional approach example. Given that I'm a big fan of the visitor pattern, I wanted to go through the paper and reimplement everything using F# for the functional approach and C# for everything else. The code will not be an exact port of the original, mostly because I don't know Pizza nor Java but also because they don't show all the code and I want to show a bit more than they did.
The key point to observe in the presented problem is that the types are recursive, in other words shapes are defined using other shapes. For example the translation of a shape, or a union of two shapes. This case cannot be ignored when we build a tree of types to represent some kind of domain and problem.
The authors used an abstract class as base type for the object oriented approaches, I used an interface. I'll try to motivate my choice later on.
All the code is available here https://github.com/davidelettieri/extensible-visitor.
Functional approach
The functional approach is the simplest and shortest of all, it is super easy to add a new tool and it is impossible to add new datatype without changing existing code. Let's examine why it's impossible.
type Point = { X: float; Y: float }
type Shape =
| Circle of radius: float
| Square of length: float
| Translated of shape: Shape * offset: Point
let rec containsPoint shape point =
match shape with
| Circle radius -> point.X * point.X + point.Y * point.Y <= radius * radius
| Square length -> point.X >= 0 && point.X <= length && point.Y >= 0 && point.Y <= length
| Translated(shape, offset) ->
let translatedPoint =
{ X = point.X - offset.X
Y = point.Y - offset.Y }
containsPoint shape translatedPoint
If we want to add a shape we need to modify the Shape definition, there is no way around that.
To be honest, I'm not sure this is totally bad. The code is so short and clean and adding a new type will trigger a compilation error. It's exactly what we want, we know where we have to fix the code so that the new shape is supported everywhere. But doubting the OCP is beyond the scope of this post.
As a bonus I tried a functional approach in C# and while the result is more verbose, we are able to define a new function ContainsPointV2() that supports a new shape and we don't need to modify any existing code.
public static class Tools
{
public static bool ContainsPoint(Point point, IShape shape) =>
shape switch
{
Square s => point.X >= 0 && point.X <= s.Length &&
point.Y >= 0 && point.Y <= s.Length,
Circle c => point.X * point.X + point.Y * point.Y <= c.Radius * c.Radius,
TranslatedShape ts => ContainsPoint(
new Point(point.X - ts.Point.X, point.Y - ts.Point.Y),
ts.Shape),
_ => throw new NotSupportedException($"Shape of type {shape.GetType().Name} is not supported")
};
// sorry for the bad naming
public static bool ContainsPointV2(Point point, IShape shape) =>
shape switch
{
Square s => ContainsPoint(point, s),
Circle c => ContainsPoint(point, c),
TranslatedShape ts => ContainsPointV2(
new Point(point.X - ts.Point.X, point.Y - ts.Point.Y),
ts.Shape),
UnionShape s => ContainsPointV2(point, s.Shape1) || ContainsPointV2(point, s.Shape2),
_ => throw new NotSupportedException($"Shape of type {shape.GetType().Name} is not supported")
};
}
The highlighted line is key in correctly supporting the new shape. Since the TranslatedShape type is recursive, when we define a new tool to support a new shape, any instance of TranslatedShape could contain an instance of the UnionShape. This means that the recursive call needs to be done using the new tool definition. In this case ContainsPointV2(). This recursion is the key for understanding the approach of the paper and the extensible visitor pattern implements this exact behavior.
Of course with this approach we are accepting the fact that we might get runtime exceptions, for example if someone passes a UnionShape instance to ContainsPoint(). Not exactly safe and while we are not changing our code, clients using our code need to update to ContainsPointV2() in order to be able to handle correctly the new UnionShape type.
Object oriented with the interpreter pattern
Using the interpreter pattern means that each tool is a function on the data type, this pattern is usually explained with grammars or expressions however it has a more generic applicability. Whenever we have a family of types which expose the same behavior, a method, then we have a usage of the interpreter pattern.
The approach that is proposed is the following:
- we start with a set of types all extending a base abstract class with a method representing the initial tool supported by the types.
- we want to add a new shape. We define a new type that inherits the base abstract class and implement the method.
- we want to add a new tool. We cannot add a new method to the existing types because we don't want to modify existing code. Instead, we define new types that extend the original one implementing the new tool.
Unfortunately existing clients of our code need to change the types they are using in order to leverage the new tool.
Remarks on the interpreter pattern and the provided implementation
In the original GoF definition and in the code samples provided by the authors in the article the base type is an abstract class but there are some unclear points:
- the base abstract class is having the

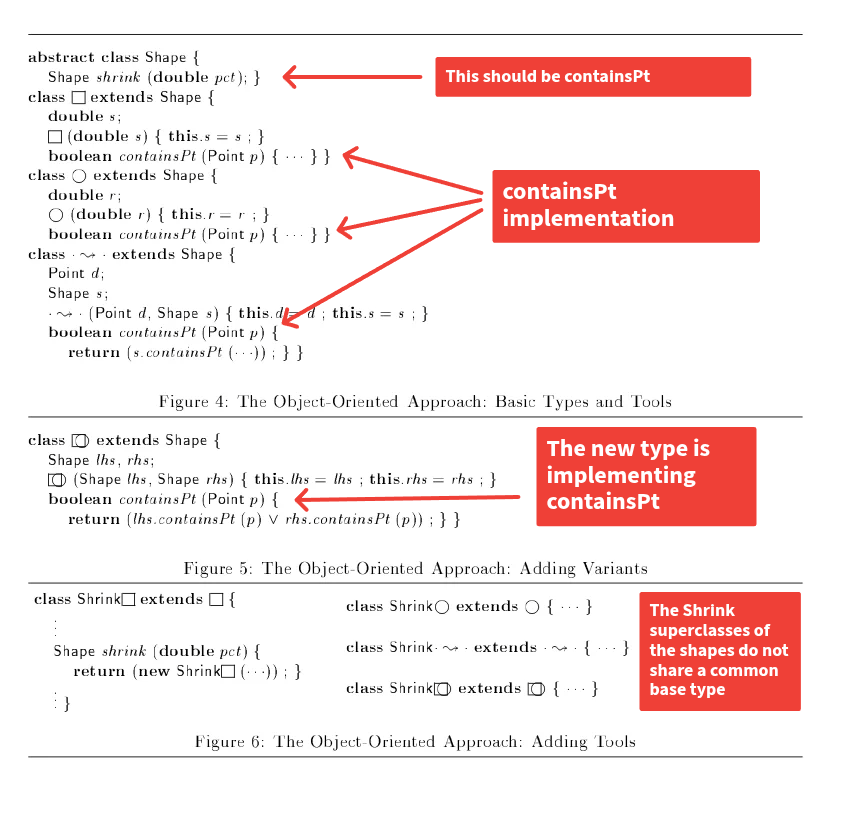

shrinkmethod but all the initial shapes implementcontainsPt, the authors probably wanted the base abstract class to have thecontainsPtmethod - the new union shape implements
containsPt - the newly implemented types extending the original shapes to have the
shrinkmethod don't have a base type in common which is a requirement to be able to handle shapes in a polymorphic manner.
The last point is why I decided to use interfaces for the C# code, imagine we define a new base abstract class for the shrinkable shapes. Then in order to allow code reuse we would have to inherit from multiple base types for example:
abstract class Shape {...}
abstract class ShrinkableShape {...}
class Square : Shape {...}
class ShrinkableSquare : Square, ShrinkableShape // Impossible!
As noted in the code listing and as probably every reader knows we cannot inherit multiple classes, however we can implement multiple interfaces.
So, omitting most of the code, a shrinkable shape using the interpreter pattern in C# with interfaces instead of abstract base classes would look like this:
public interface IShrinkableShape : IShape
{
IShrinkableShape Shrink(double num);
}
public record ShrinkableSquare(double Length) : Square(Length), IShrinkableShape
{
public IShrinkableShape Shrink(double num) => new ShrinkableSquare(Length / num);
}
Object oriented with the visitor pattern
The visitor pattern is very much the same approach as the functional one. Adding a tool is the easy part because it only entails defining a new visitor type. The following is how we would approach in C#.
public interface IShape
{
T Process<T>(IShapeProcessor<T> processor);
}
public interface IShapeProcessor<T>
{
T ForSquare(Square square);
T ForCircle(Circle circle);
T ForTranslatedShape(TranslatedShape translatedShape);
}
public sealed record Square(double Length) : IShape
{
public T Process<T>(IShapeProcessor<T> processor) => processor.ForSquare(this);
}
// more shapes
public class ContainsPoint(Point point) : IShapeProcessor<bool>
{
public bool ForSquare(Square square) =>
point.X >= 0 && point.X <= square.Length &&
point.Y >= 0 && point.Y <= square.Length;
public bool ForCircle(Circle circle) =>
point.X * point.X + point.Y * point.Y <= circle.Radius * circle.Radius;
public bool ForTranslatedShape(TranslatedShape translatedShape) =>
translatedShape.Shape.Process(new ContainsPoint(
new Point(point.X - translatedShape.Point.X, point.Y - translatedShape.Point.Y)));
}
public sealed class Shrink(double num) : IShapeProcessor<IShape>
{
// omitted
}
Adding a new shape without modifying existing code is more challenging. As for the interpreter pattern we proceed by adding new code: the new shape type, a new visitor interface that inherits from the existing one and is able to process also the new shape and, lastly, the implementation of our tools.
public interface IUnionShapeProcessor<T> : IShapeProcessor<T>
{
T ForUnionShape(UnionShape unionShape);
}
public sealed record UnionShape(IShape Shape1, IShape Shape2) : IShape
{
public T Process<T>(IShapeProcessor<T> processor)
{
if (processor is IUnionShapeProcessor<T> unionProcessor)
{
return unionProcessor.ForUnionShape(this);
}
throw new NotSupportedException($"Processor of type {processor.GetType().Name} does not support UnionShape");
}
}
public class UnionContainsPoint(Point point) : ContainsPoint(point), IUnionShapeProcessor<bool>
{
public bool ForUnionShape(UnionShape unionShape) =>
unionShape.Shape1.Process(this) || unionShape.Shape2.Process(this);
}
The obvious difference is that our original implementation is type safe while the new one is relying on runtime checks to validate that the visitor instance is able to handle the new shape. However, as the authors point out, there is a less obvious, critical flaw: this implementation does not work for recursive types. The issue is with the recursive type TranslatedShape, the UnionContainsPoint visitor is reusing the base implementation of ContainsPoint. This means that it is executing the following code
public bool ForTranslatedShape(TranslatedShape translatedShape) =>
translatedShape.Shape.Process(new ContainsPoint(
new Point(point.X - translatedShape.Point.X, point.Y - translatedShape.Point.Y)));
Which is calling Process on the inner shape of the original object and it is passing a new instance of ContainsPoint (and not UnionContainsPoint!) so now we lost support for the Union shape. A unit test can confirm the expected behavior:
[Fact]
public void TestNestedTranslatedShapes()
{
// Arrange
var circle = new Circle(10);
var square = new Square(10);
var t1 = new UnionShape(square, circle);
var t2 = new TranslatedShape(t1, new Point(5, 5));
// Act & Assert
Assert.Throws<NotSupportedException>(() => t2.Process(new UnionContainsPoint(new Point(0, 0))));
}
The power of the visitor pattern comes from the fact that with a single call t2.Process(...) we are calling 2 methods on 2 different object obtaining a double dispatch at runtime. However when the ContainsPoint visitor is creating an instance of itself and that behavior is inherited by new visitor types, we are breaking the double dispatch because ForTranslatedShape will pass to Process the original visitor instance and not the extended one.
Object oriented with the extensible visitor pattern
The key part to understand from the visitor pattern approach is that a tool implementation, a visitor, will break if its implementation is creating new instances of itself or other tools. Today, at least in C# world, we are quite used to not directly create instances of types and relying on dependency injection to get our instances and to plug-in different instances when needed.
A visitor directly creating an instance of its same type or another is clearly coupling itself to some specific implementation. The solution is to abstract the creation away so that we can use different instances, with the same interfaces, if we need to update a visitor to handle a new type. The following code shows how to implement it using a virtual method on the processor.
public class ContainsPoint(Point point) : IShapeProcessor<bool>
{
protected virtual ContainsPoint MakeContainsPoint(Point p) => new(p);
public bool ForSquare(Square square) =>
point.X >= 0 && point.X <= square.Length &&
point.Y >= 0 && point.Y <= square.Length;
public bool ForCircle(Circle circle) =>
point.X * point.X + point.Y * point.Y <= circle.Radius * circle.Radius;
public bool ForTranslatedShape(TranslatedShape translatedShape) =>
translatedShape.Shape.Process(MakeContainsPoint(
new Point(point.X - translatedShape.Point.X, point.Y - translatedShape.Point.Y)));
}
public class UnionContainsPoint(Point point) : ContainsPoint(point), IUnionShapeProcessor<bool>
{
protected override ContainsPoint MakeContainsPoint(Point p)
=> new UnionContainsPoint(p);
public bool ForUnionShape(UnionShape unionShape) =>
unionShape.Shape1.Process(this) || unionShape.Shape2.Process(this);
}
The UnionContainsPoint type, by overriding the MakeContainsPoint virtual method is able to update the behavior of the base class to recognize the new shape. This is very much similar to the function ContainsPointV2 that is recursively calling itself.
